Epoxy Support Cover Carbon
Epoxy support cap
++BLUE++ After curing very strong and light. ++ENDBLUE++
Description
Epoxy support cap is a two component epoxy system, filled with carbon fiber. The A-component of this epoxy consists of a fiber-rich kneading mass and the B-component is a blue colored, liquid. After curing, it will become very strong and light. The Epoxy is perfect to use (thickness +/- 3 mm), for the making of support caps but is also used for the creation of a model or shape.
Technical data
Mixing ratio (weight) | [Putty (A): Liquid (B)] | 5: 1 (20%) | ||
processing Time | [Min] | 60-90 | ||
De-mould time@ 20ºC | [Hours] | 16 | ||
Color | [-] | Light blue / gray | ||
Density | [G / cm³] | 0.75 |
processing
Take the desired amount of Putty and add the correct ratio of liquid (20% in weight). Knead the two components together well until a uniform color and a homogeneous mass without lumps is obtained. Roll this mass from, for example, with a rolling pin until it reaches the desired thickness. Apply the putty to your model / mold or knead your design. Please keep in mind the processing time and do not work with more material than you can handle in one go.
Caution: Epoxy is adhesive to fresh silicone. Use a release agent, or plastic film!
Important
Direct contact with epoxy should always be avoided. See safety data sheet!
packing

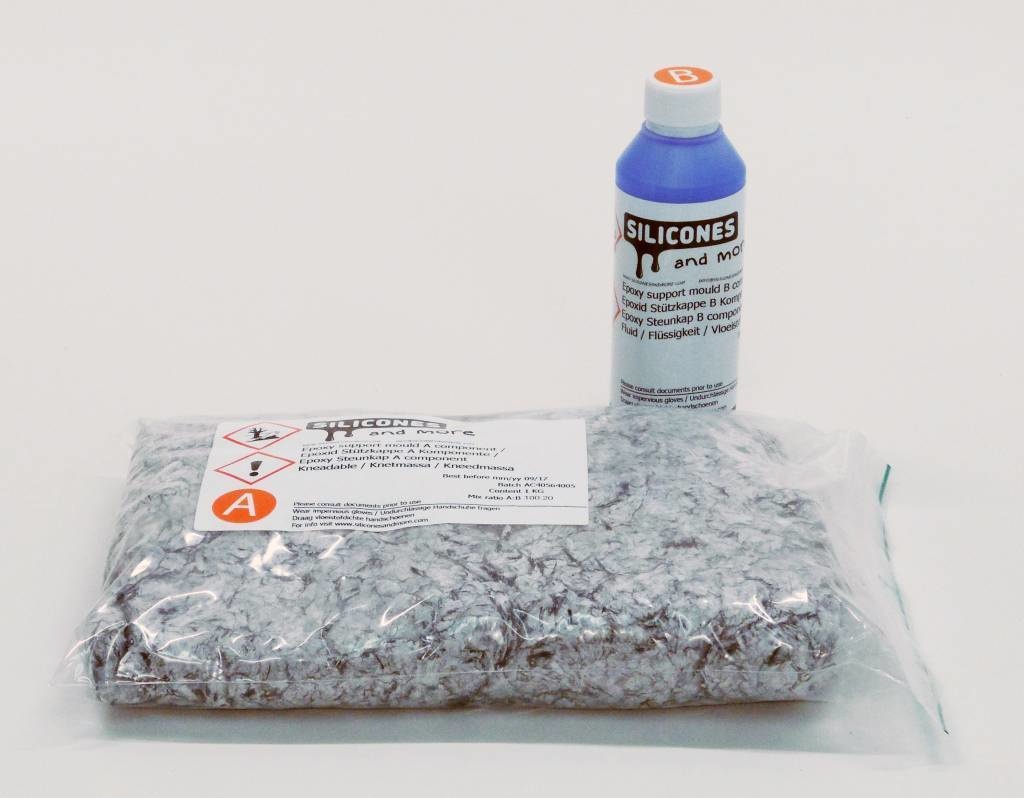

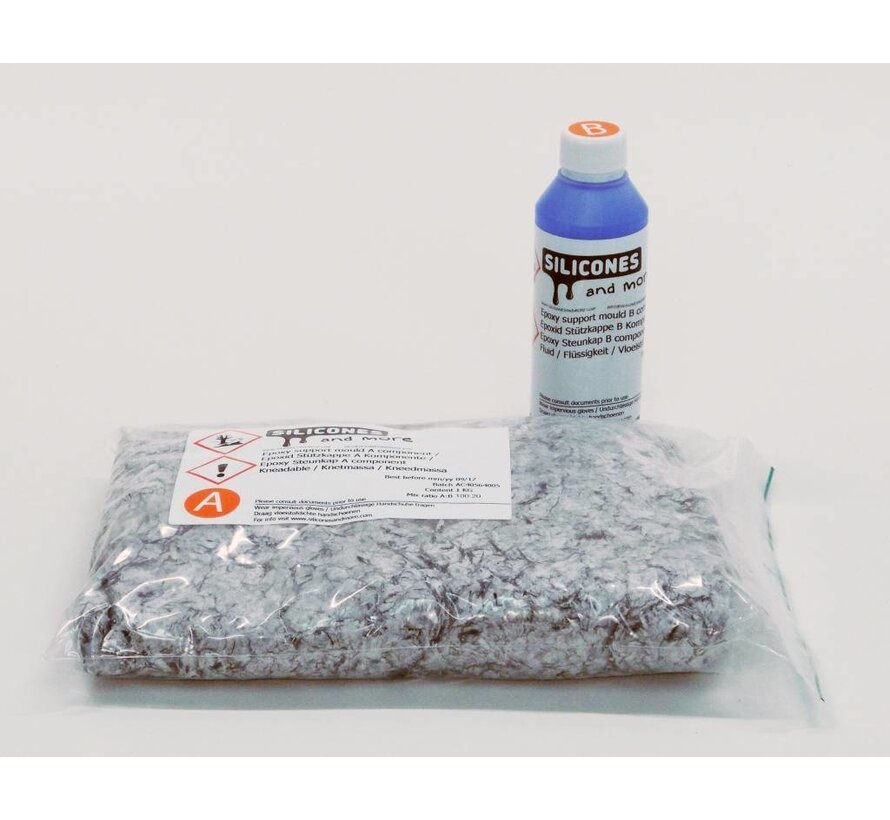

The epoxy comes in a kit consisting of 1 kg of putty (A-comp.) And 200 grams of liquid (B-comp.) With a thickness of 3 mm, this is sufficient for an area of 40 cm x 40 cm. (length x WIDTH)
Durability
The kneading epoxy is best saved in closed container in a dry place between 6-28 ° C. Shelf life is at least 1 year if properly sealed.
safety
Both the A and B component may cause skin sensitization. Only use this product with appropriate protective gloves, goggles and with adequate ventilation. Also read the MSDS for specific information.
Skin contact: Immediately wash with soap and water. Consult a physician if marks or irritations remain
If swallowed drink plenty of water, do not induce vomiting. Consult doctor!
Eye contact: Flush with plenty of water for at least 15 minutes and consult a doctor!
++DOWNLOADS++
| Document | Download |
| Product Information |  |
Tutorial two-part mold with support cap deer
++USP++
- Low density
- Easy to mix / knead
- Adheres well to many types of materials, as well as on its own, does not adhere to silicone.
- After curing to work well (sawing, grinding, milling, drilling, etc ..)
- Possible to process with weapons (anti-torsion).
- A thickness of 3 mm is strong enough, even for larger models.
· Low density.
