Polyester Clear Set
polyester Clear
++BLUE++ This resin is ideal for encapsulating objects, but you can also make cast small shapes with it. ++ENDBLUE++
Description

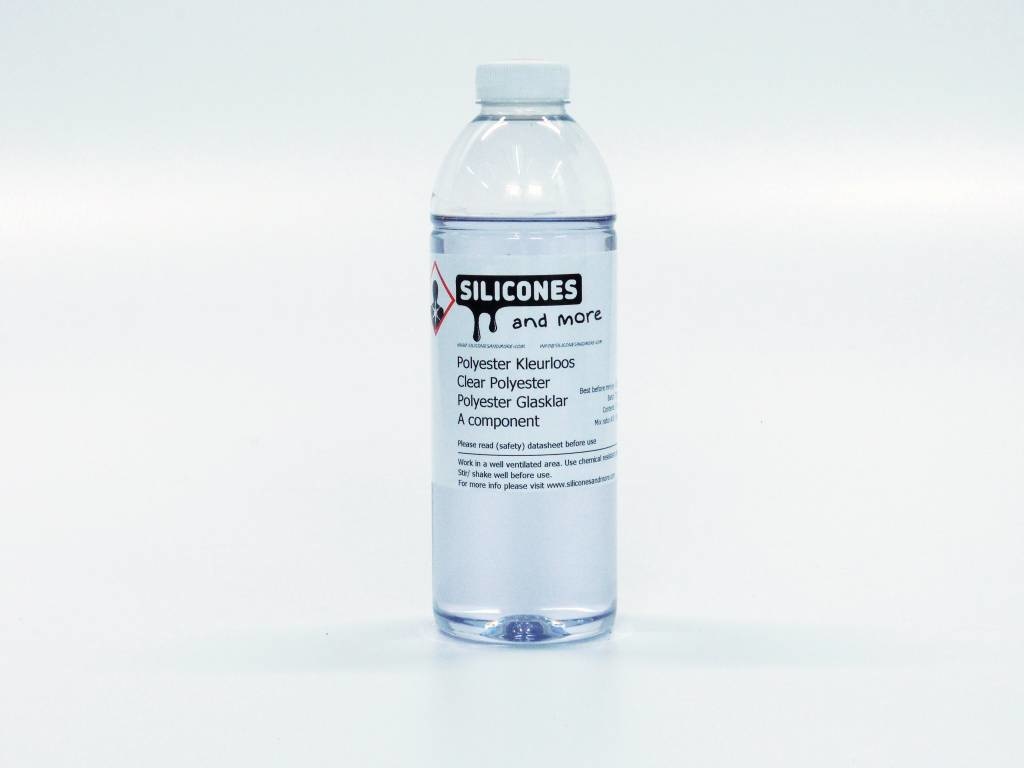

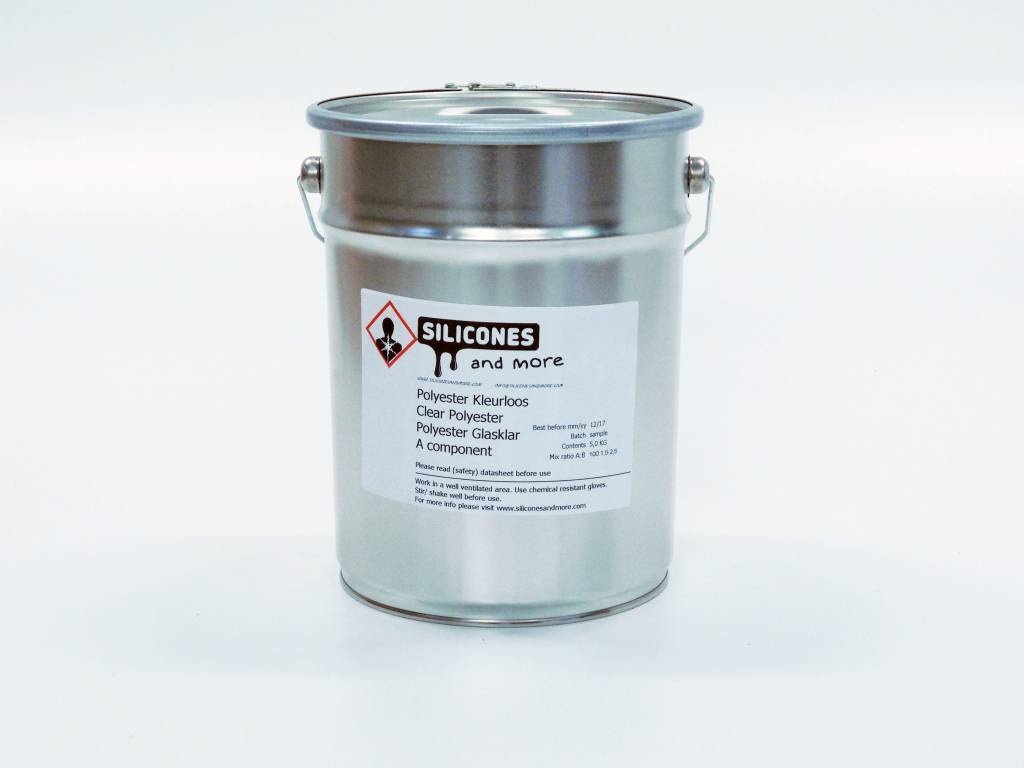

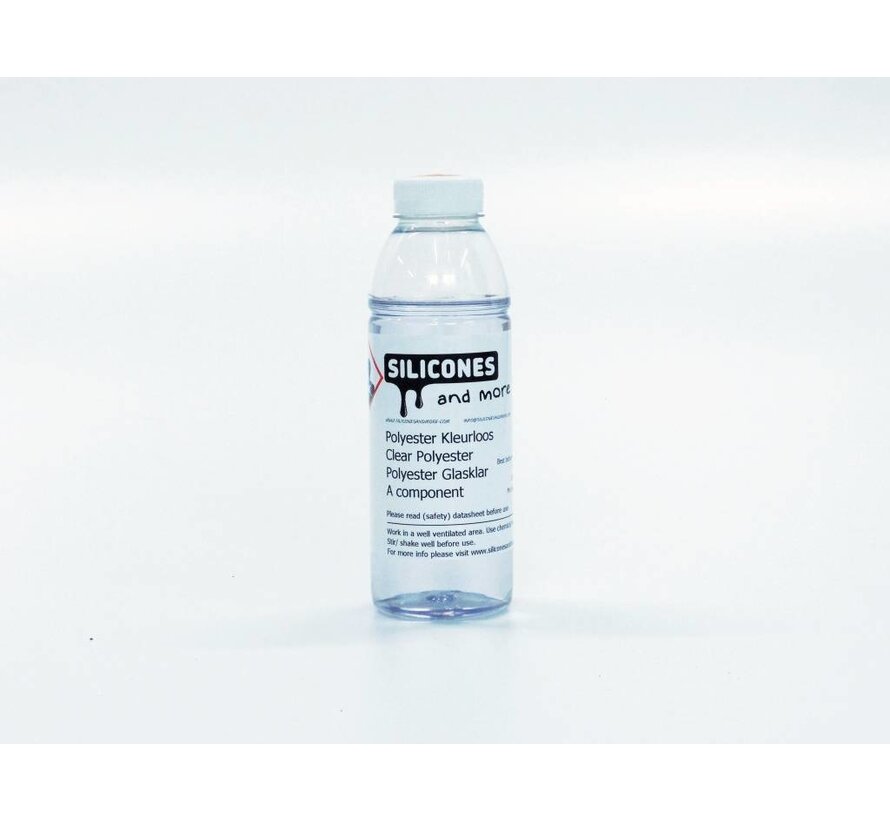

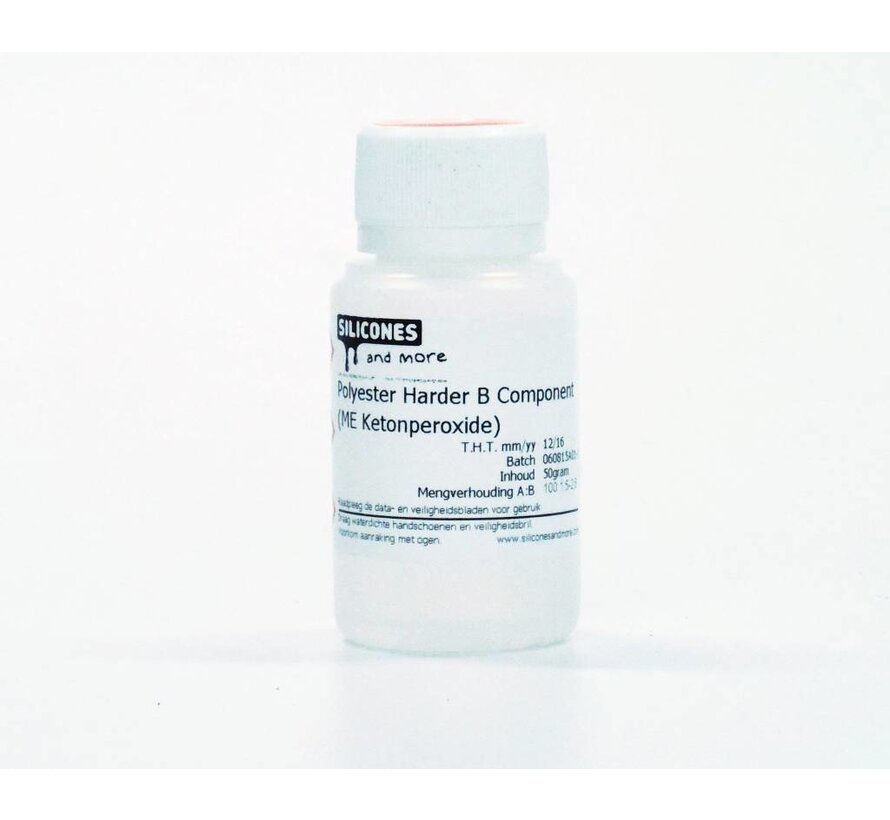

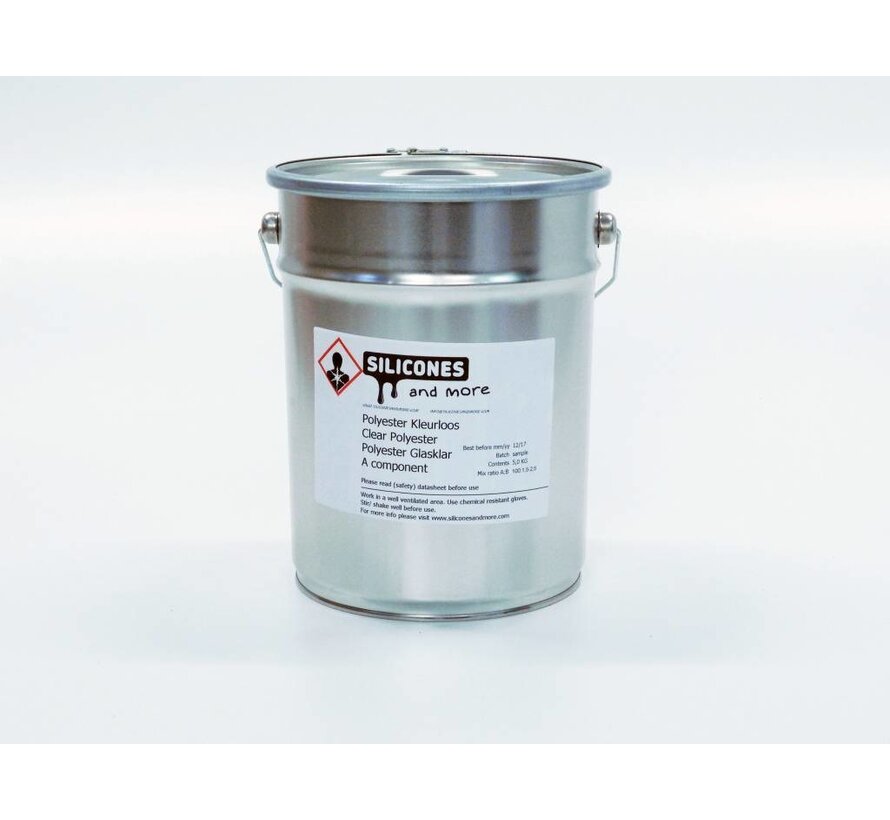

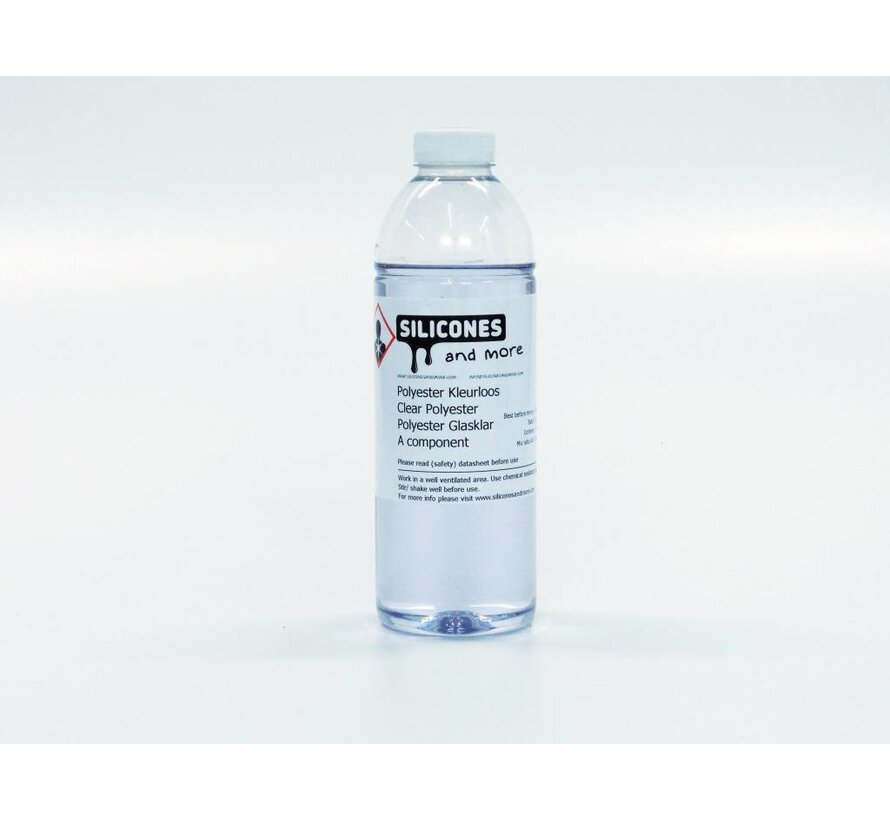

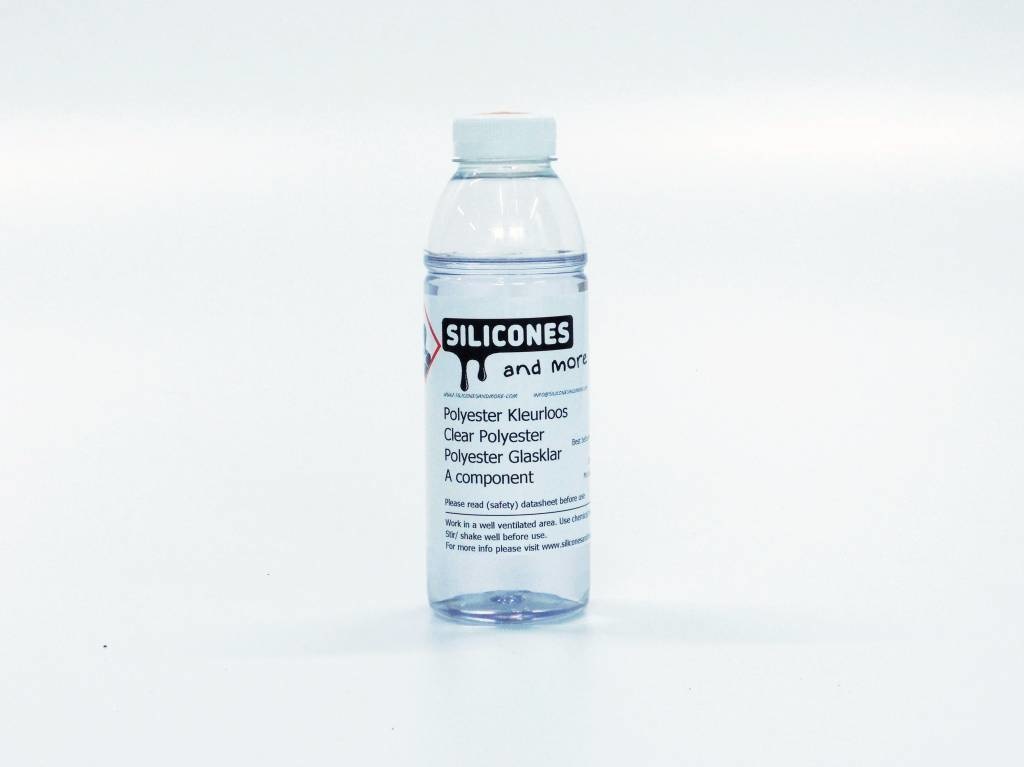

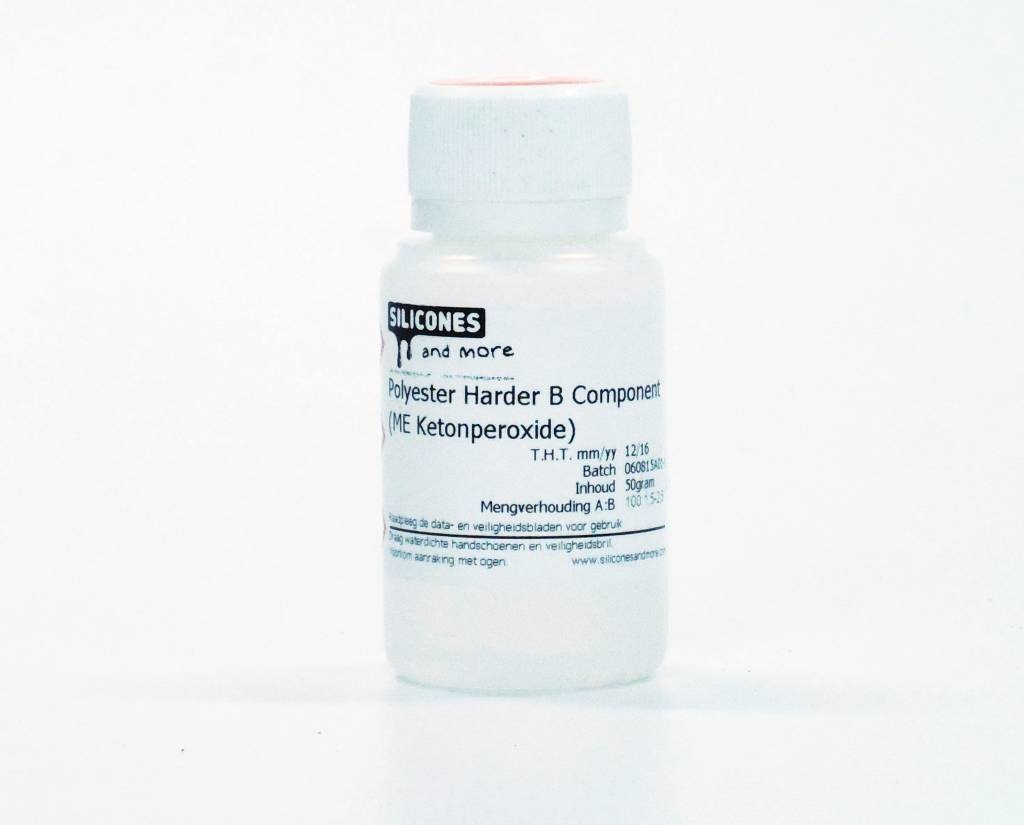

This two-component casting resin is colorless and transparent like water. This resin is UV stabilized. Of course, even this material will over time yellow slightly under the influence of UV. This product consists of an A component (polyester resin dissolved in styrene) and the B component Methyl Ethyl Ketone Peroxide (in our shop polyester ketone peroxide). This resin is very fluid and suitable for the encapsulating of objects you want to keep. The result is a very hard crystal clear plastic.
Technical data
Mixing ratio (weight) |
| [A: B] |
| 100: 1.5-2.5 (two is best) |
Processing time at 1% peroxide at 20oC |
| [Min] |
| 30-45 |
De-mould time @ 20 ºC * |
| [Hours] |
| More than 2 hours, depending on thickness and temperature |
Color (UV-resistant) |
| [-] |
| Bright but discolores slightly over time |
Viscosity @ 20 ° C |
| [MPa s] |
| 900 |
Density after curing |
| [G / ml] |
| 1.22 |
Flexural strength DIN EN 63 | [N/mm2] | 90 | ||
Modulus of elasticity DIN 53 457 | [N/mm2] | 3500 | ||
Tensile strength DIN EN 61 | [N/mm2] | 55 | ||
Impact strength DIN 53 453 | [KJ/m2] | 8 | ||
Tg glass transition temperature DIN 53 445 | [oC] | 80 | ||
Stable up to (ISO 75) | [oC] | 70 | ||
Shrinkage (room temperature hardening) DIN 16 946 | [%] | 7 | ||
Refraction index DIN 53 491 | - | 1.55 | ||
Dielectric constant DIN 53 483 | - | 3 | ||
Dielectric loss at 106 Hz DIN 53 483 | - | 0.02 | ||
Surface resistance DIN 53 482 | [Ω] | 1013 | ||
Spec interior resistance DIN 53 482 | [Ω.cm] | 1015 |
* Full cure @ 20 ° C after a few days. Please note that touching the casting before it is completely cured migh leave finger prints.
Processing
Add the A and B components in the proper weight parts together (100: 1.5-2.5) and mix the components well. For smaller castings, we recommend adding some more harder (2 to 2.5%) in larger castings just slightly less (1.5 to 2%)
Pour the mixed product with a constant and thin jet into the mold. Take care not to entrpa air. Excessive heat in castings of more than 15mm thickness can be prevented by pouring several successive layers (allow to the layer set before the following layer is added). De-mould only after the specified time has elapsed or better yet after several days. The thermal and mechanical properties will develop rapidly, but it is possible to improve the thermal behavior by post curing the casting for 2 hours at 60 oC for every 2 cm of thichkness. It is recommended to process the products at 20 °C and to pre-heat the mold to 40 oC. After the cast has de-aired you can place it in an oven at 40 oC to speed up the curing process.
Important
Always work in a well ventilated area and use protection gloves and safety goggles.
Packing

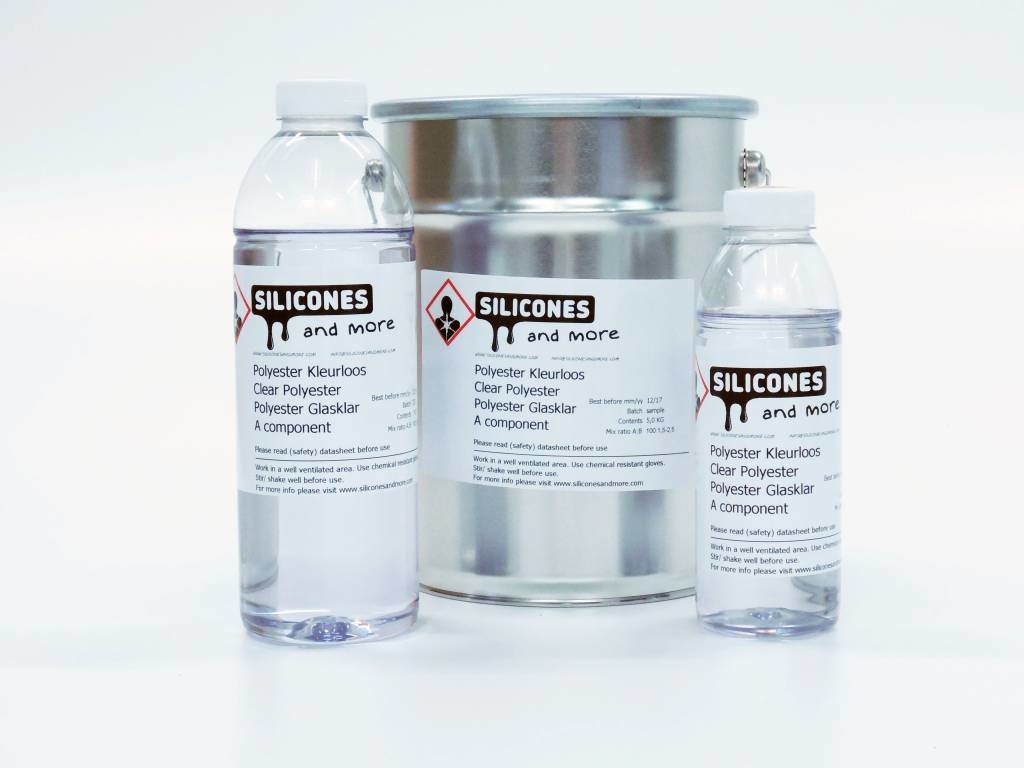

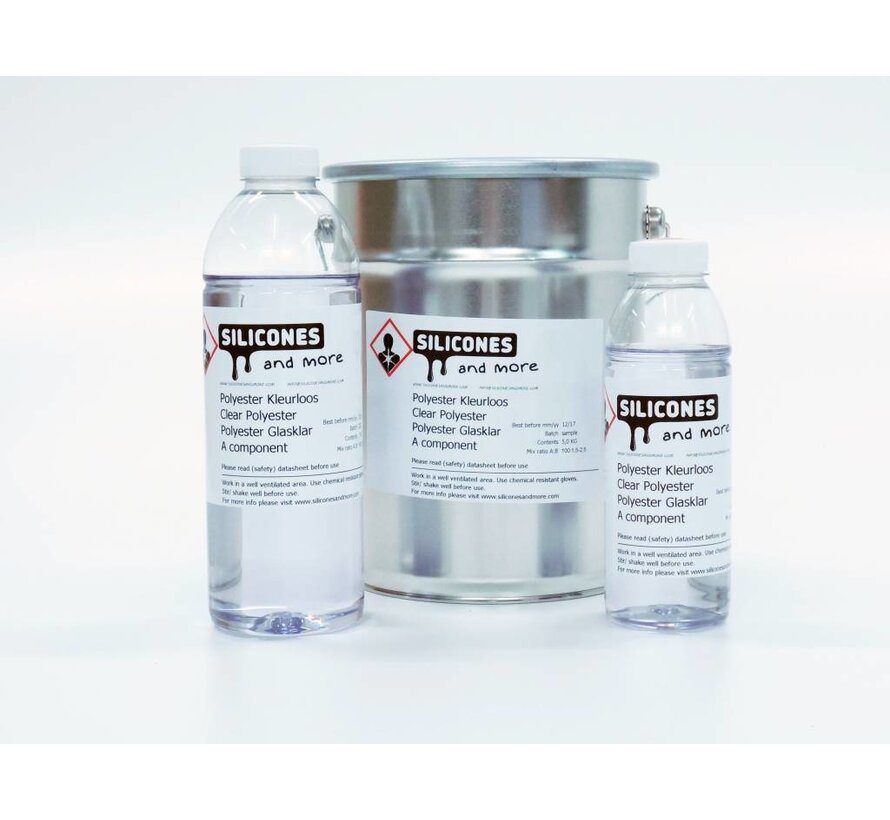

Polyester Clear is a kit. The two components are thus both included in the set.
Durability
Properly sealed and stored out of direct sunlight around 15 -25oC the shel life is at least 6 months.
Safety
The products in liquid form are harmful to health. Skin contact with one or both of the components must be prevented. Prolonged or frequent use of this product will cause vapors to be irritating to your respiratory system. When handling this product, wear protective gloves. Always work in a well ventilated area. For further information see Safety Data Sheet.
++DOWNLOADS++
| Document | Download |
| Product Information |  |
++USP++
- crystal
- UV resistant
- Designed for easy use
- Can be cast to layer thickness of at least 10 mm
- Low viscosity (liquid)
- Can be molded without vacuum draw.
